Features
- The most powerful true UV LED leak detection light
- Never need amber glasses to see the Leak
- Performs better on dye than 100W corded UV light
- Copper substrate to quickly drain the generated heat to the flashlight housing.
- Copper reflector, also helps to drain heat away from the LED
- Anodized aluminum alloy housing, also functions as heat sink
- Recessed glass lens to prevent scratch and yellowing
- Push button on-off switch with momentary and constant illumination features.
|
|
Optional Features
- Optional 1 W white or Color Slim LED heads,
- Optional headset attachment
- Optional flexible tube
- The UV LED head can be attached to CR123 or rechargeable power unit
|
|
|
|
 |
|
|
|
Slim True UV LED Light Versus Blue LED Light for Leak Detection
The major difference:
True UV LED light : NEVER NEED AMBER GLASSES
Blue LED light: HAVE TO WEAR AMBER GLASSES
Our Slim UV LED light is True UV (wavelength ~395 nm).
to wear amber glasses to clearly see the leak, you are using a blue LED light, not a true UV LED light.
Slim True UV LED Light Versus Filtered UV Light
Our Slim UV LED light performs better on dye than a 100 W corded UV light
A filtered high power UV flashlight uses a filter to obtain UV light from a xenon bulb. Most of the light from the
xenon bulb becomes wasted. The bulb also runs hot and needs to be replaced often. A filtered high power UV
flashlight is usually powered by a rechargeable battery to be able to run continuously for around 1 hour after
each recharge. This type of high power UV flashlight usually costs around $200.

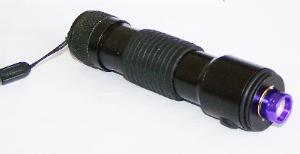

Our Slim UV LED head can also be attached to our Eagle rechargeable flashlight, which increases the UV light’
s output power. The battery can also run continuously for around 10 hours after each recharge.
Slim True UV LED Light Versus other UV LED Lights
Other UV LED lights use single or multiple epoxy-encapsulated UV LED lamps. Heat generated from the LED
chip becomes trapped, and the temperature of the LED chip will rise to over 125 degree C in only a few
seconds. The UV light therefore will shift to a longer wavelength of over 420 nm to become deep blue. In
addition, the epoxy encapsulation turns yellow after exposed to the UV light, the light therefore degrades over
time.
Our Slim UV LED light (395 nm) uses a Power UV LED chip that is 10 times larger than regular ones. The chip
is directly alloyed onto the copper housing, so the heat generated from the chip is efficiently drained. As a
result, the temperature of the LED chip stays nearly the same as that of the LED head.
|
|
|
