Overview

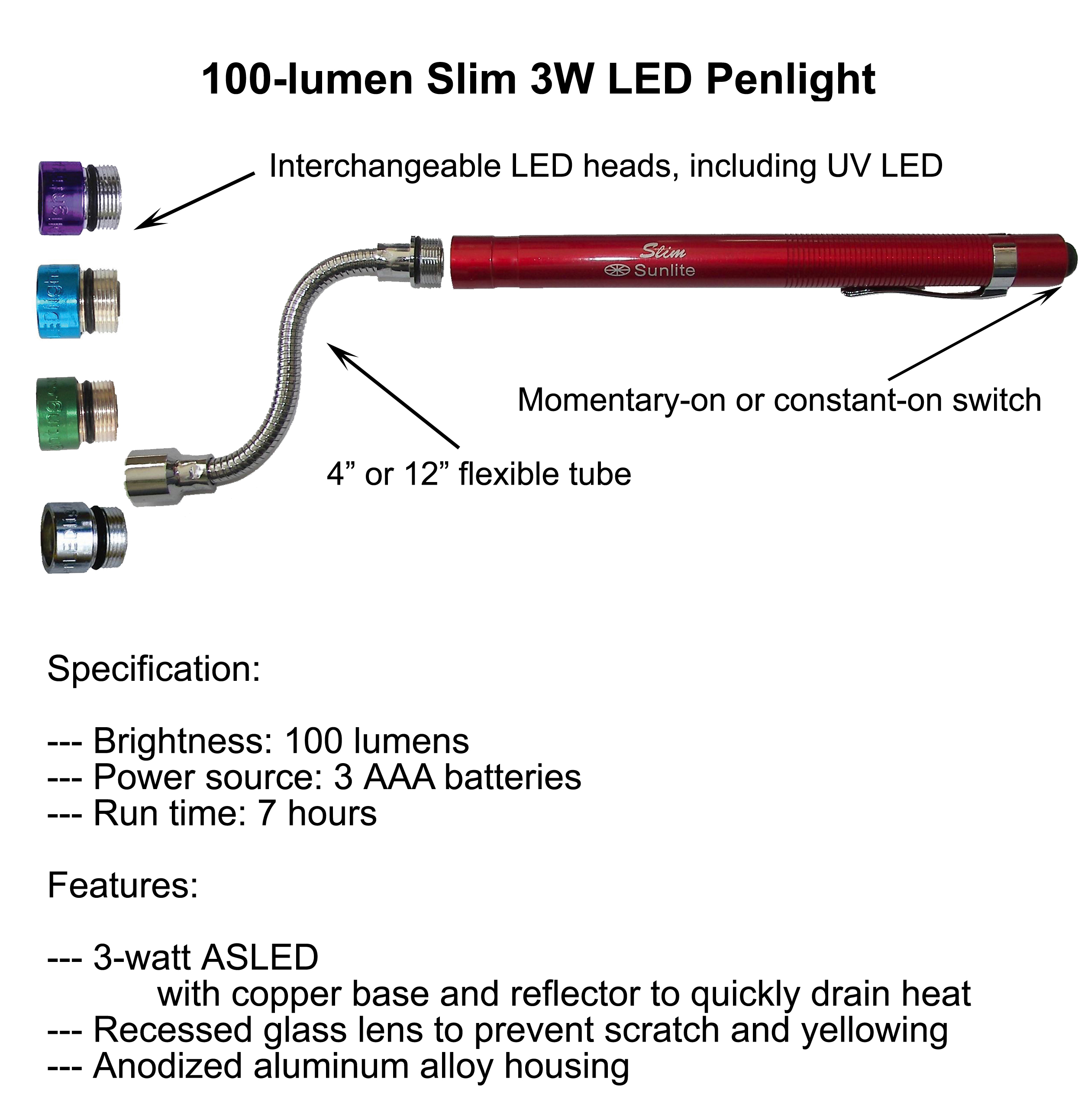

- Basic Slim 3W LED Penlight also includes 3 AAA batteries and blue rubber sleeve
- Fit in the shirt pocket

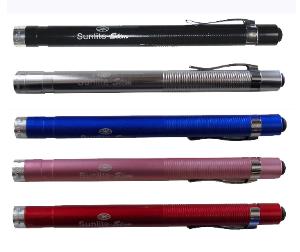

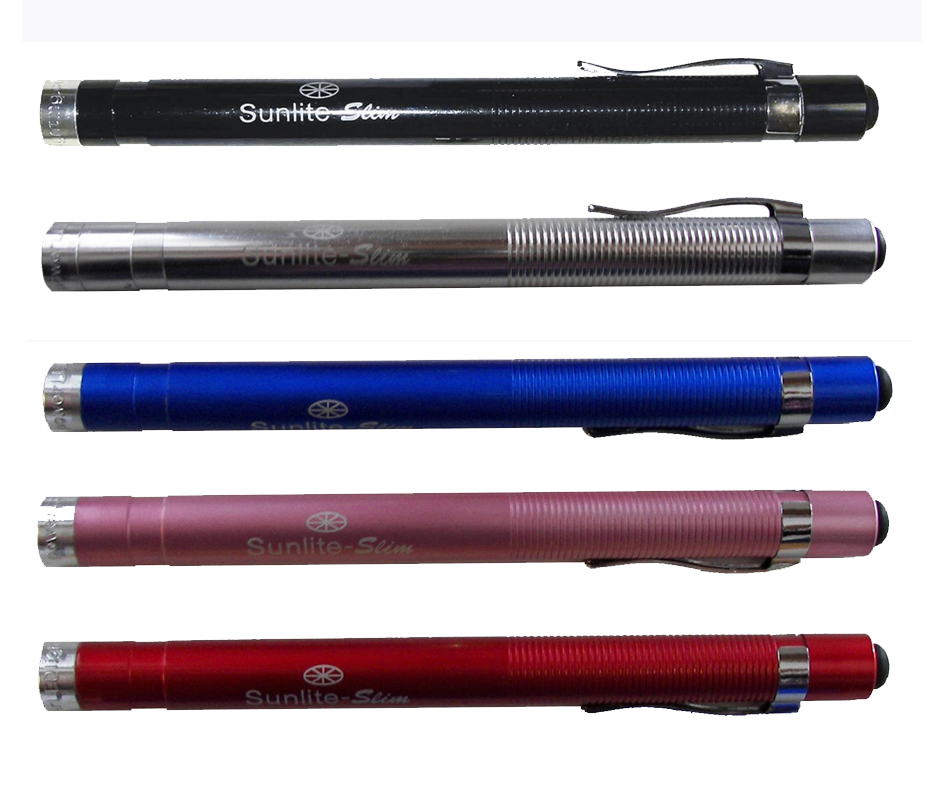

- Available in blue, red, black, silver and pink
|
Features
- Copper substrate to quickly drain the generated heat to the flashlight housing. The thermal conductivity of
our LED is around 1'C/W.
- Copper reflector, also helps to drain heat away from the LED
- Anodized aluminum alloy housing, also functions as heat sink
- Recessed glass lens to prevent scratch and yellowing
- Push button on-off switch with momentary and constant illumination features.

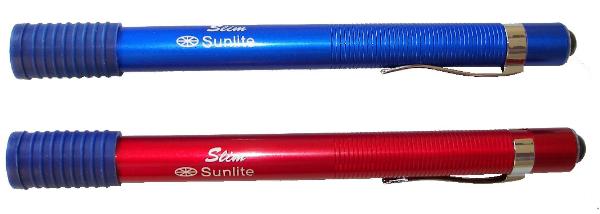

- Rubber sleeve to protect the batteries be indented at the positive side when the flashlight fells
|
Optional Features

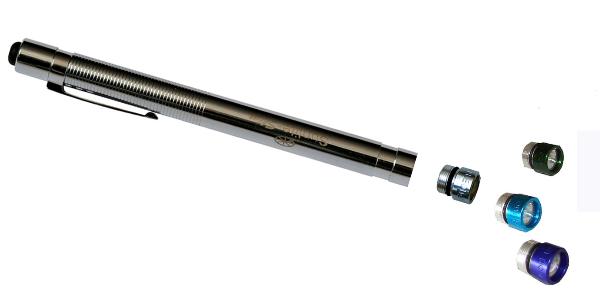

- Optional 1 W Color Slim LED head
- Optional 12 inch and 4 inch flexible tube
- Optional headset attachment
|
Maintenance Notes
- If there is build-up on the LED contact pad, the light may flicker or quit working, please scratch off the build-
up and wipe clean the contact pad
- If the battery has the positive tip indented, the flashlight may flicker, please change the batteries. Weak
batteries will more likely cause flickering. The rubber sleeve (Part#:SNLRS13) helps to protect the
batteries.
- Positive side of the battery should go in first
- If the spring in the housing becomes loose overtime or the batteries get indented, a contacting PCB board
(Part #:5SNLPCB10) will help to tighten up the batteries.
|
|
