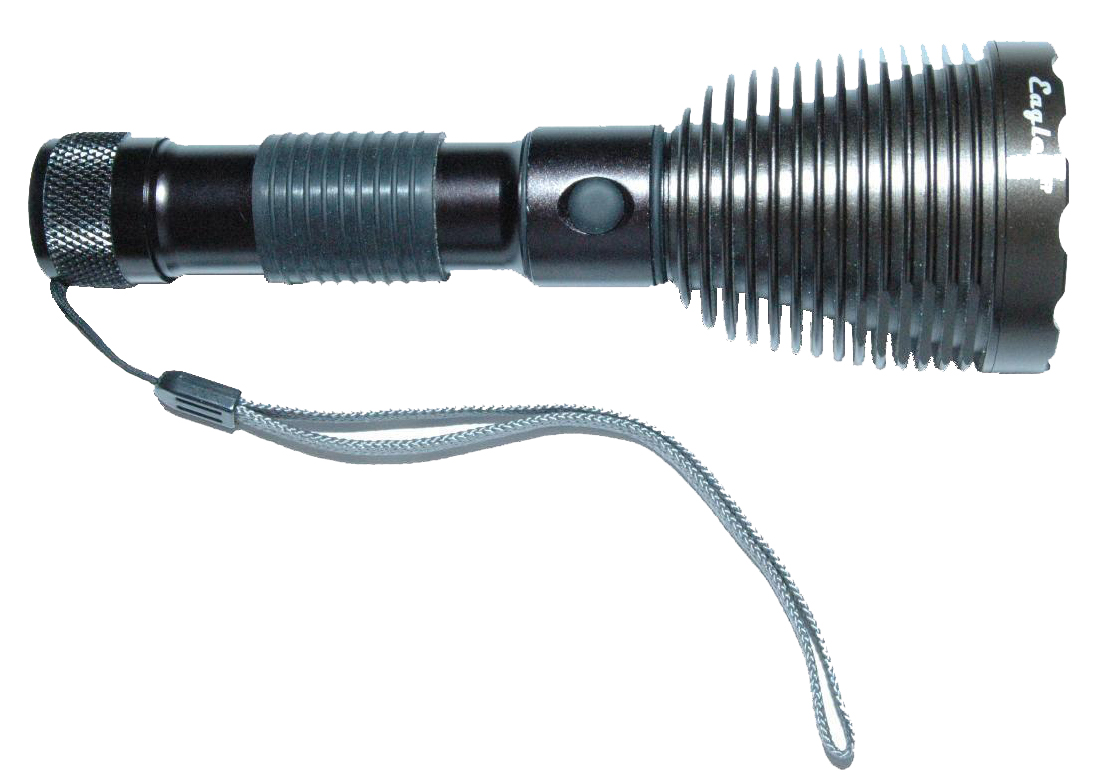

Rechargeable 16WFP-2600 LED Flashlight
Specifications
Brightness
 over 480 lumens (Turbo), ~130 lumen (side switch)
Size
 6.4 inch (163 cm) in height,  LED head: 53 mm in diaemter, Housing: 25 mm in diameter
Weight
 7.7 o.z. (118 g)  (with battery)
Power source
 2600 mAh Li-ion rechargeable battery
Charger
 AC charger, optional 12 volt car charger
Run time

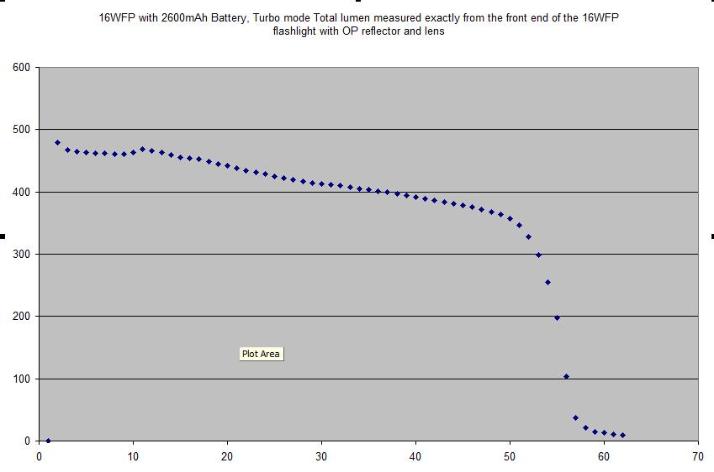

 50 minutes (Turbo mode)
Recharge Time
 3 hours
Color
 black, Type III Hard anodized
Others
 Water resistant and shock resistant
A Pioneer in LED Chip Technology
Rechargeable 16WFP-2600 LED Flashlight
Part Number: SNLET16W5326
Online:    $198.00
Retail:       $219.95
Battery / Tailcap Switch
Reflector
Color Temperature

Contact US at (785) 832-8818 or jeff@sunlitest.com about Bulk Rate for 5 + Units

Contact Jim at (785) 840-5137 or jhaller@sunlitest.com for LEO price
Overview
  • 16WFP-2600 Rechargeable LED Flashlight also includes battery, AC charger and Belt Pouch SNLBP53.
  • The Tail Switch of the 16WFP-2600 offers ~130 lumens, the Side Switch offers over 480 lumens.
  • Forward Clicky Tail Switch (1.3" long) allows for one-hand operation, but is longer than a Twisty Tail Switch (0.8")
  • 16WFP-2600 employs a multi-chip emitter, 4X60mil
  • 16WFP-2600 employs a LED head of 53mm in diameter.
  • 16WFP-2600 throws a super tight beam of over 600 feet.

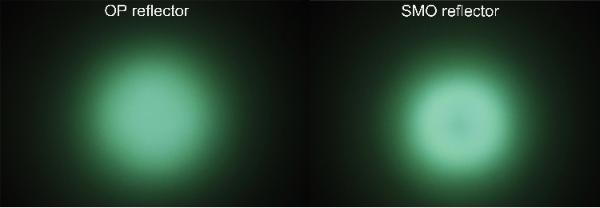

  • 16WFP-2600 comes with either OP reflector or SMO reflector. The beamshots of the OP and SMO reflectors are as below:
    The SMO reflector has tighter center beam, but may show "cross-like" artifact in the center.















  • The thermal conductivity of our LED is around 1'C/W. The copper substrate, the aluminum reflecotr and the fins are all to
    help to drain heat away from the LED chip.
  • 16WFP-2600 has Type III Hard Anodized aluminum alloy housing
  • 16WFP-2600 uses toughened Ultra Clean Glass Lens
  • 16WFP-2600 comes with a rubber sleeve for secure grip and gun mounting
Notes:

***************************************************
FP80 and 16WFP use same size glass lens, reflectors and lens ring.

FP80 uses single LED chip (80X80mil), it has a much tighter center beam compared to 16WFP

****************************************************
16WFP and 12WFP have similiar light output.

16WFP uses bigger LED chips (four of 60X60mil chips), bigger reflector. It has bigger surface area to remove heat. 16WFP will run
cooler than 12WFP.

12WFP uses a smaller reflector and smaller LED chips (four of 45X45mil chips). 12WFP has a tighter center beam.
**************************************************************
12WFP and 8WFP use same size glass lens and lens ring. They don't share reflectors.

12WFP uses a bigger base (compared to 8WFP) to mount the LED chips for better heat removal, the reflector used for 12WFP has a
bigger opening on the bottom.

***************************************************************
