12WFP-5200 LED Flashlight (640 lumens)

Please Choose:

  • Model: SNLET12W4052

Qty Discounts Off Price
* Discounts may vary based on options above
Retail: $239.00
Add to Cart:

    • 640 lumens (tail switch), 220 lumens (side switch).
    • Runs 2 hours (tail switch), 10 hours (side switch).
    • Height:7.9", LED: 1.6", Weight 8.5 oz with battery.
    • Rechargeable 5200mAh Li-ion battery.
    • Super tight center beam for far projection.

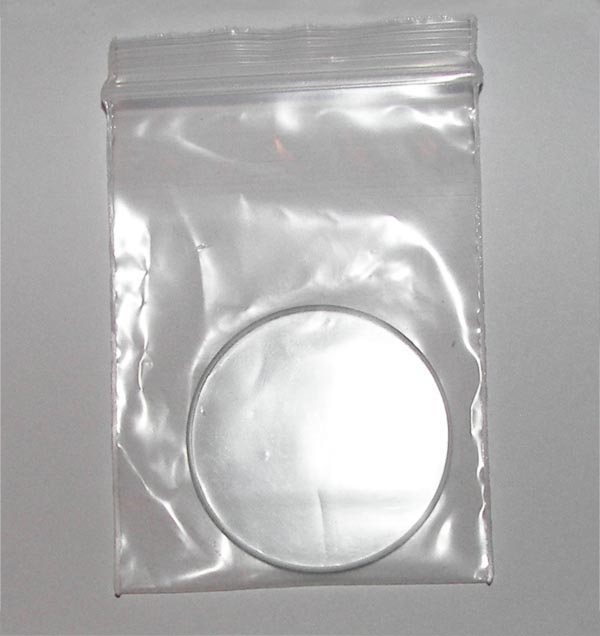

    • Aluminum reflector, replaceable glass lens.
    • Comes with belt pouch and AC charger.

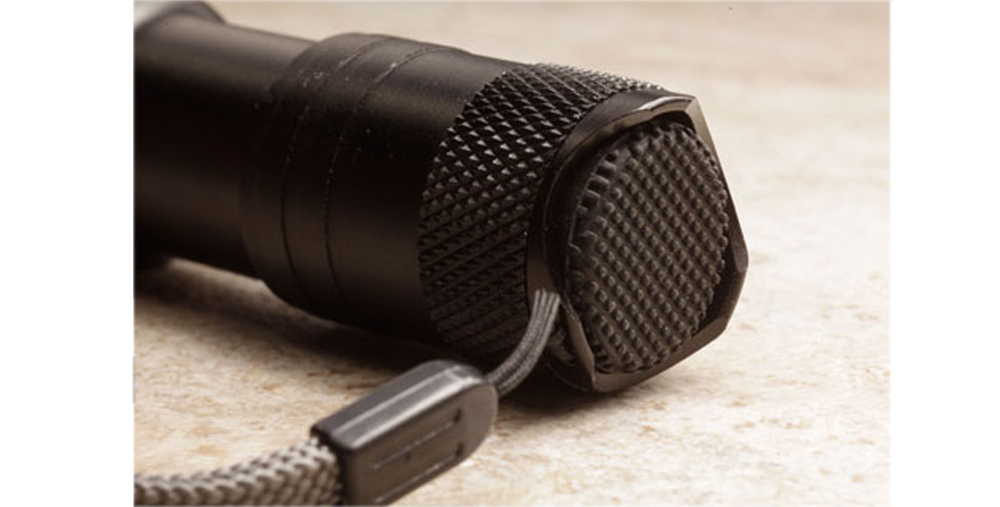

    • Optional Forward Clicky Tailcap.
    • Optional 12V car charger.

Important Notes:
the 12WFP Red and Infra Red LEDs only work using side switch, or with charger plugged in. When the Tail switch is on, the Red and Infra Red LEDs may strobe. All other color LEDs will work with both switches.

The rechargeable Li-ion battery comes with the light uses a LG battery cell. Protection circuit was added the battery cell to prevent overcharge and deep discharge. The AC charger comes with the light is a 4.6V/1.2A AC charger. The original battery and charger are highly recommended for this product. Regular 18650 battery won't work with the 12W Flashlight. Please do not use a charger with a voltage higher than 4.6V, or with a current higher than 1.2A.

Rechargeable 12WFP Datasheet

Technical Notes:

  • Four 45x45 mil LED chips.
  • Same size reflector and glass lens as 8WFP LED flashlight
  • The thermal conductivity of the LED is around 1 C /W.
  • Copper substrate to quickly drain the generated heat.

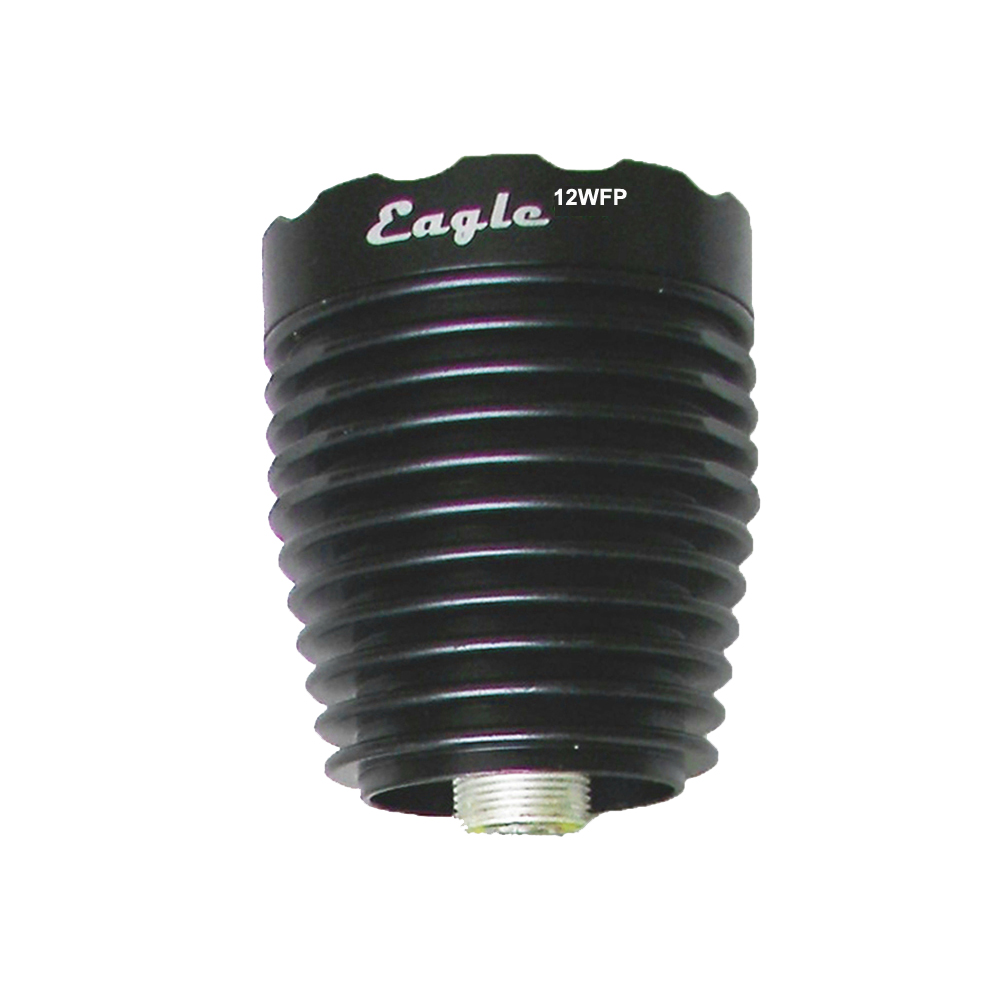

  • Fins, aluminum reflector, anodized almunium housing to enhance heat dissipation.
  • Clicky Tailcap is 1.3 long, Twisty Tailcap is 0.8" long.
