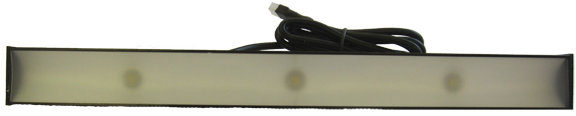

15W 12" SunStrip30 Cove Light

Product 3/3

Previous
Return to the Product List
Next
  • Model: ST30Y12M2X3




Call for Details
1200 lumens
90W incandescent equivalent
consumes 15W






Warning: 24V/12" Sunstrip40 need be connected before connected to LED driver
LED driver: LPC-20-700 drives 1
LED driver: LPC-35-700 or ELN-30-48D(dimmable)drives 2 (2 24V/12" Sunstrip30 in serial)
LED driver: ELN-60-48D(dimmable)drives 4 (2 parallel groups of 2 24V/12" Sunstrip30 in serial)

    • 2 LED modules
    • 24V, consumes 15W, 1200 lumens, 4000K or 6000K
    • Can be linked up to 2 units using a 35W power supply
    • Aluminum Strip: 12" (L) X 1-1/4" (W) X 1-3/8" (H) )
    • Coverage 150 degree
    • Operating ambient temperature -40°C to +60°C
    • 5-year warranty
    • Please select LED driver from the accessories to power the strip
    • Dimming is available when combined with a dimmable LED driver and a dimming switch.

18'X18' Living Room Estimate (16 pcs 1ft Sunstrip30 cove light or 8 pcs halogen downlight, 6 hours a day, $0.12/kwh)
Cost at installation of ST30Y12M2X3V24 will be recovered in 8.5 years.
1ft Suntrip30 cove Halogen
Total lumens 17280 7200
Total Cost at Installation ($) 1544 500
Total Parts Cost in 22 years 0 1658
Total Electric Bill in 22 years 1387 2313
Total Costs in 22 years 2931 4471


Tab View Script
Specification More Pictures Accessories Warranty/Technical

Dimension: 12"(L) x 1.6"(W) x0.4"(H)
Brightness: 1200 lumens
Coverage: 150 degree
Color Rendering Index (Ra): ~75
Weight: 5 o.z.
Current on LED: 700mA

Please call 785-8328818 for instruction sheet.



Why We’re Unique
All of our LED Light Strips use our proprietary AS-LEDs (Application Specific LEDs), which are designed for perfect integration with our lights. While other manufacturers take extra steps and put their LEDs on a MC-PCB board and use plastic coverings, we place our AS-LEDs directly on aluminum. Due to this and the unsurpassed durability and heat dissipation of our designs, our LED Light Strips catapult to the top in terms of lifetime, efficiency, and brightness.


  • constant current converters
  • On/off switch on cable
  • Permanent Mount dimmable converters
  • Dimming switch

5-year warranty on LED strip.
